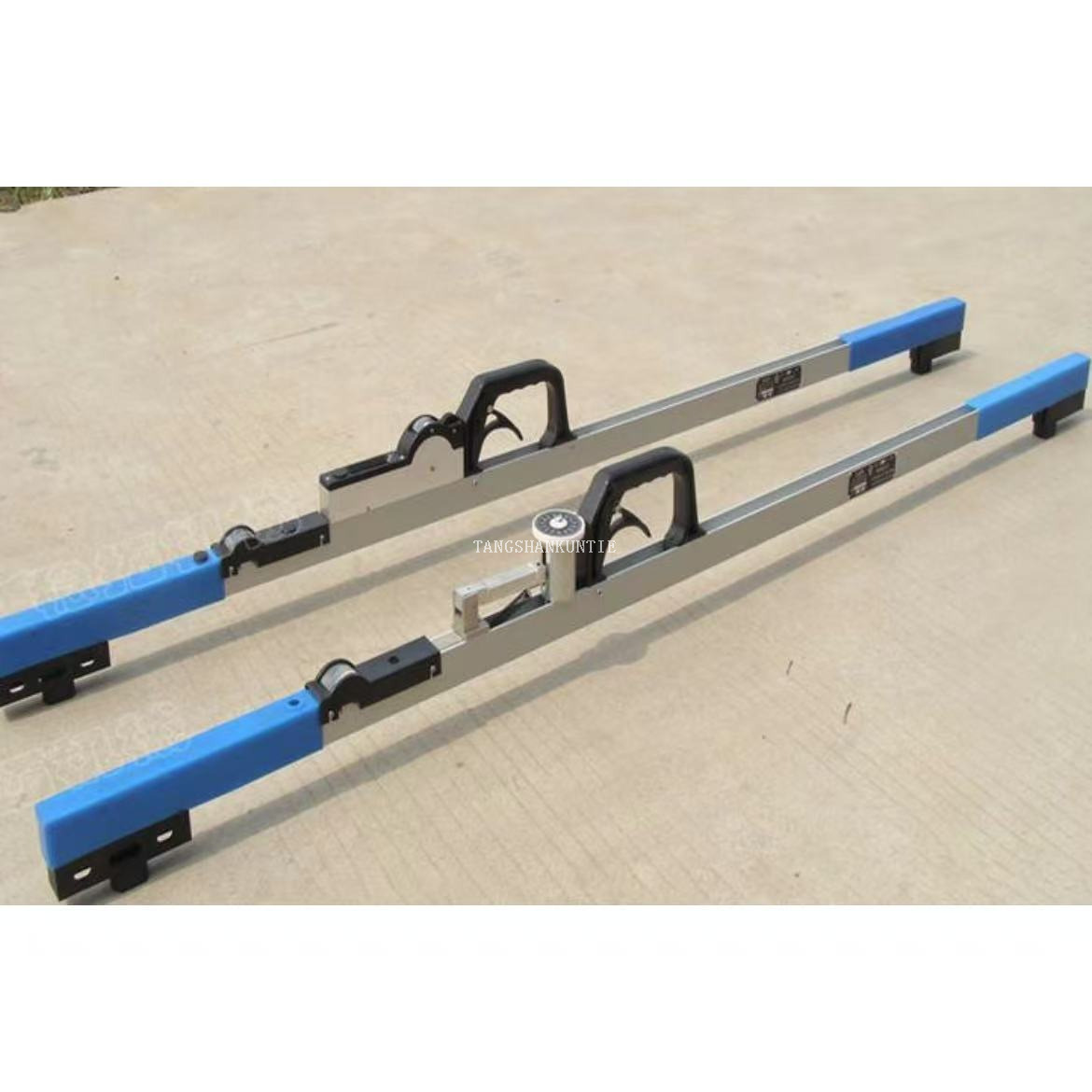

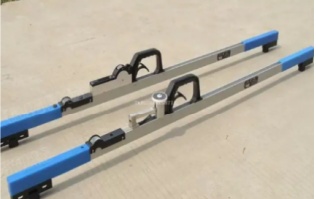

Multi-Parameter Integrated Detection to Reduce Railway Inspection Time
During daily inspections of railway sections, traditional detection methods require multiple tools such as track gauges and level gauges to be used in separate steps. In contrast, this track gauge can simultaneously capture key parameters including rail gauge, level, and longitudinal profile, significantly shortening the inspection time for individual track segments. This not only greatly increases the daily inspection distance but also reduces the physical strain on maintenance personnel caused by repetitive operations.
Lightweight and Portable Design, Suitable for Field Railway Operations
Featuring a lightweight overall design and a compact, portable form factor, it can be easily operated by a single person and used in confined spaces. It can be directly carried in an inspection backpack without requiring additional transportation tools, significantly reducing the physical burden on field personnel. The lightweight design enables workers to quickly reach the site, shortening fault resolution time.
Precise Measurement to Ensure Train Operational Safety
The track gauge achieves a rail gauge detection accuracy of ±0.2 mm and a level accuracy of ±0.3 mm, enabling precise identification of subtle parameter deviations. This helps avoid rework during acceptance caused by non-compliant track dimensions and shortens the project closing cycle.
High Wear Resistance and Long-Lasting Durability
Constructed with high-strength materials and featuring an embedded dual-profile structural design, it resists wear and maintains accuracy over time. Its robust and durable build significantly reduces work interruptions caused by tool failure and lowers maintenance costs.
Railway Daily Operation and Maintenance Inspections
Suitable for the maintenance of section lines on conventional railways, it enables rapid detection of parameters such as rail gauge and level. By replacing the multi-tool, step-by-step approach, it assists maintenance personnel in efficiently identifying potential track deviation issues.
Application in New Railway Track Acceptance
Used in the acceptance phase after track installation for both conventional railways and high-speed railways, it verifies whether parameters such as rail gauge and longitudinal profile comply with construction standards. It accurately identifies subtle deviations, thereby avoiding rework during acceptance inspections.
Condition Monitoring for Heavy-Haul Railways
Designed to address the characteristics of heavy-haul railways, such as high axle loads and rapid degradation of track parameters, it enables frequent monitoring of issues like rail gauge deviations. This supports the development of maintenance plans and helps reduce operational safety risks for freight trains.
Is daily maintenance of the track gauge troublesome?
Not at all. It only requires monthly cleaning to remove accumulated rail wear debris from the measuring head and a precision calibration once every six months. This is much more convenient compared to traditional tools, which require maintenance twice a month.
Does the Universal Track Gauge require frequent calibration?
The Universal Track Gauge is equipped with an indication adjustment mechanism for quick calibration. In the daily maintenance of high-speed rail tracks, calibration can be completed within 30 seconds simply by rotating the adjustment bolt, eliminating the cumbersome process associated with traditional tools.
What types of tracks is the Universal Track Gauge suitable for?
The Universal Track Gauge supports multiple rail gauge specifications, including 600 mm, 762 mm, 900 mm, 1000 mm, and 1435 mm. It is suitable for various types of track lines, such as main railway lines, subways, mining railways, regional railways, and urban rail transit systems. In urban rail transit renovation projects, there is no need to carry multiple sets of tools—all measurements can be completed with a single adjustment, significantly improving work efficiency.
