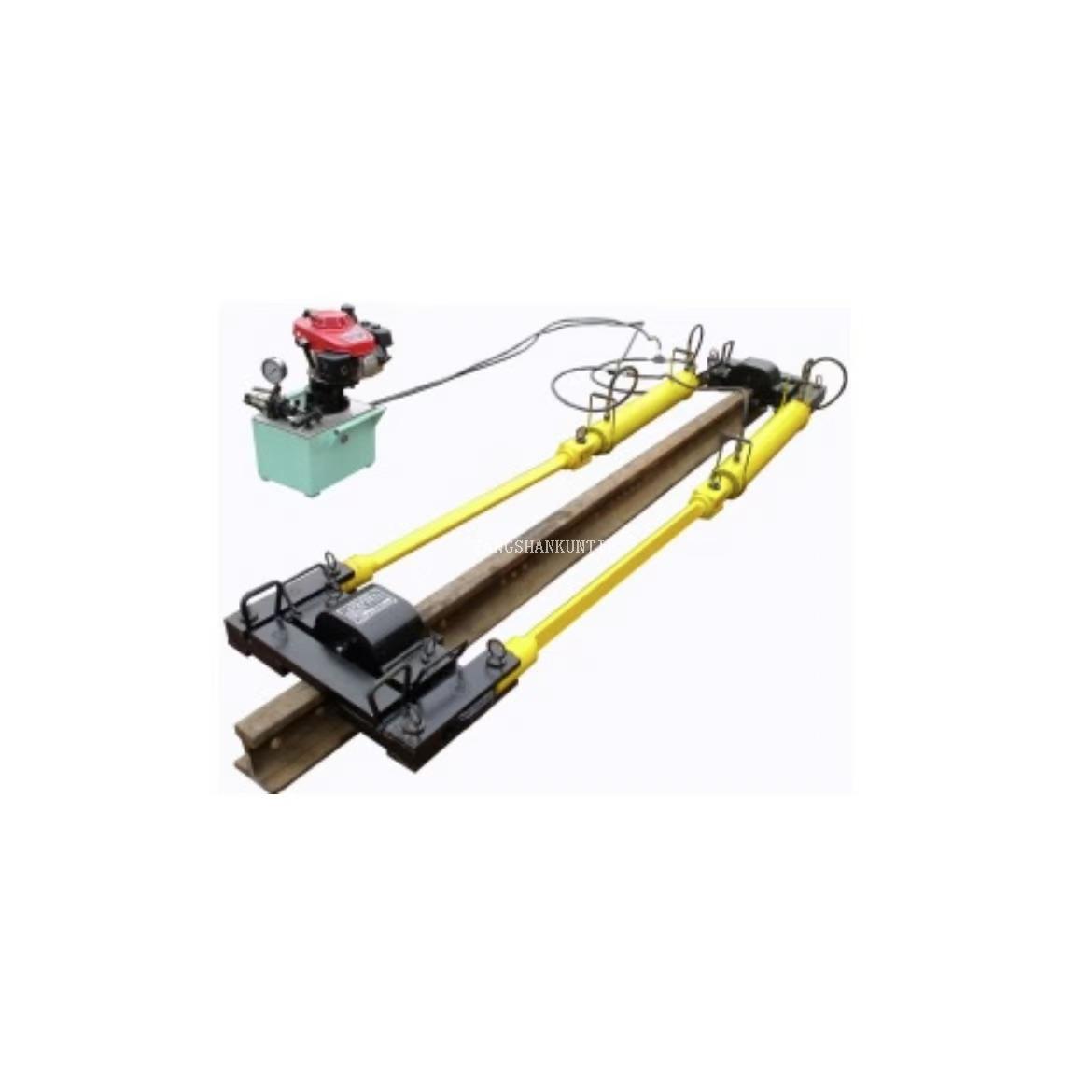

Hydraulic Rail Stretching Machine YLS-900I

The Hydraulic Rail Stretching Machine YLS-900I represents the pinnacle of modern track maintenance engineering, meticulously designed to resolve the complex challenges of thermal expansion and rail gap management. When infrastructure teams deploy this equipment, they immediately notice the robust, unyielding feel of the Q345 high-strength steel frame, coated in a premium anti-corrosion finish that stands resilient against biting frost, relentless rain, and abrasive metallic dust. The dual-acting hydraulic cylinders operate with a low, steady hum, delivering an immense 900kN of smooth, bidirectional thrust without the jarring mechanical clatter typical of older tensioning methods.

By exerting controlled, uniform force, this machine seamlessly draws heavy steel rails together, eliminating the micro-gaps that generate passenger-disturbing noise and accelerate wheel-tread wear. Infrastructure operators benefit from a profound reduction in long-term maintenance cycles, as the precise stress adjustment prevents catastrophic buckling during extreme summer heat or winter contractions. The tactile feedback of the precision pressure gauges allows operators to feel in complete control, ensuring every millimeter of stretch aligns perfectly with rigorous national safety standards. This is not merely a piece of equipment; it is a definitive solution for extending track lifespan, safeguarding passenger transit, and optimizing operational budgets for large-scale railway networks.

Product Specifications

Key Features & Highlights

Achieving flawless track alignment requires equipment that marries brute strength with surgical precision. The Hydraulic Rail Stretching Machine is engineered to transform labor-intensive track joining into a streamlined, highly controlled process. By integrating advanced hydraulic fluid dynamics with heavy-duty mechanical clamping, this device empowers maintenance crews to execute complex stress adjustments swiftly, minimizing track downtime and maximizing operational throughput.

• Bidirectional Fluid Control: Double-acting cylinders enable smooth, stutter-free pushing and pulling, ensuring the rail web is never subjected to sudden, damaging impact loads.

• Ergonomic Spatial Design: Engineered with a compact footprint that fits seamlessly between tight sleeper spacings, reducing the need for extensive ballast excavation.

• Corrosion-Resistant Armor: Every exposed metal surface is treated with industrial-grade anti-corrosive polymers, maintaining structural integrity even in damp, subterranean subway environments.

• Versatile Power Integration: Seamlessly transitions between manual hydraulic pumping for remote locations and electric or petrol stations for high-volume, rapid-deployment projects.

Advanced Engineering Capabilities

Performance & Precision

The cornerstone of seamless rail construction lies in the absolute control of tension. This machine generates an overwhelming 900kN (90 tons) of stretching thrust, capable of manipulating heavy steel as if it were malleable wire. This immense power is paired with millimeter-level stroke control, allowing engineers to calibrate rail stress with surgical accuracy. Such precision ensures that the final track geometry strictly adheres to stringent national safety protocols, including GB/T 18115.

• Generates 900kN of uniform, non-destructive tensioning force.

• Facilitates millimeter-precise length adjustments for exact stress relief.

• Eliminates joint gaps to suppress transit noise and mechanical vibration.

Adaptability & Compatibility

Railway networks are rarely uniform, often featuring a patchwork of different rail profiles across various sectors. Designed with universal application in mind, this stretcher features highly adaptable iron wedge web clamping jaws. These precision-machined jaws securely grip the web of any standard rail without causing surface scoring or micro-fractures. This universal compatibility means maintenance fleets no longer need to transport or inventory multiple specialized clamps for different track segments.

• Universal iron wedge clamping mechanism prevents rail web scoring.

• Seamlessly adapts to profiles from 50kg/m up to heavy-duty 75kg/m.

• Reduces the need for redundant tooling inventory.

• Accelerates on-site setup and transitions between different track zones.

Hydraulic System & Operation

At the heart of this tensioning device is a formidable 31.5MPa high-pressure hydraulic core. Utilizing dual-acting cylinders, the system guarantees fluid, bidirectional movement—both extending and retracting with unwavering stability. Operators can clearly read the exact stretching length via a crisp digital display, removing the guesswork from stress equalization. Furthermore, the system is designed for supreme operational flexibility, allowing crews to work efficiently even within the constrained, claustrophobic spaces between railway sleepers.

• 31.5MPa high-pressure core ensures unwavering hydraulic stability.

• Dual-acting cylinders provide smooth, controlled extension and retraction.

• Digital length display offers immediate, unambiguous visual feedback.

• Flexible power inputs adapt seamlessly to specific site conditions.

Safety & Protection

Manipulating steel under 90 tons of pressure demands uncompromising safety protocols. This equipment is fortified with a comprehensive suite of fail-safes designed to protect both the human operators and the expensive rail infrastructure. Integrated overload protection mechanisms, highly responsive pressure gauges, and precision relief valves form a continuous monitoring loop. This proactive safety architecture ensures that crews can focus entirely on alignment and locking, knowing the machine actively guards against over-stretching and material fatigue.

• Automated overload bypass valves prevent structural rail damage.

• High-visibility pressure gauges enable real-time force monitoring.

• Instant-response emergency stop mechanisms safeguard on-site personnel.

• Eliminates the risk of stress-induced micro-fractures during tensioning.

Material & Durability

Railway maintenance does not pause for inclement weather, and neither does this equipment. The entire structural framework is forged from premium Q345 high-strength steel, chosen specifically for its exceptional yield strength and resistance to heavy impact loads. To combat the relentless assault of outdoor elements, every moving component and exposed surface is sealed beneath a thick, industrial-grade anti-corrosion coating. With minimal routine maintenance, this rugged construction guarantees a highly reliable service life.

• Forged from Q345 high-strength steel for maximum impact resistance.

• Deep-penetrating anti-corrosion treatments repel moisture and oxidation.

• Engineered to operate flawlessly in sub-zero and extreme heat environments.

• Delivers a proven operational lifespan of 8 to 10 years under rigorous use.

Application Scenarios

The versatility of this hydraulic stretcher makes it an indispensable asset across the entire spectrum of modern rail infrastructure. In the realm of high-speed rail construction, it executes the flawless, gap-free joins required to safely support bullet trains traveling at extreme velocities. For urban subway networks, its precision tensioning eliminates the clattering joints that cause severe noise pollution in densely populated residential areas.

• Critical for constructing ultra-smooth, high-speed railway corridors.

• Suppresses acoustic pollution in sensitive urban subway environments.

• Corrects severe rail buckling and stress in heavy-haul freight lines.

• Neutralizes seasonal thermal expansion and contraction risks globally.
