Lithium Battery Drilling Machine

Functional Features

Advanced Power Supply System

Equipped with a 24V/10Ah lithium battery, the machine supports 4–6 hours of continuous drilling on a single charge. It also features fast-charging technology (2 hours for full charge) and a battery level indicator, ensuring operators avoid unexpected power interruptions during critical tasks.

Precision Drilling & Cooling Mechanism

The feeding mechanism allows micro-adjustments (0.1mm increments) to control drilling depth, while the built-in cooling device sprays coolant continuously onto the drill bit. This not only extends the drill bit’s lifespan by 50% but also ensures smooth, burr-free holes—critical for rail safety and component fitting.

Secure Clamping & Stability

The clamping mechanism uses anti-slip rubber pads and locking bolts to fix the machine firmly on rails (compatible with 50kg/m to 75kg/m rail sections). This design prevents vibration-induced displacement during drilling, guaranteeing hole accuracy and operator safety.

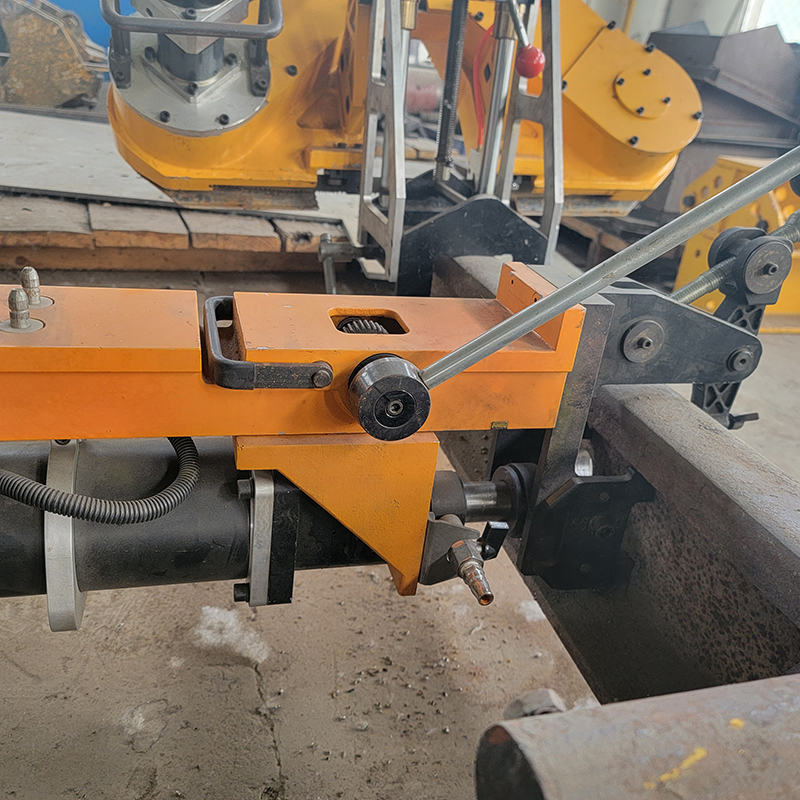

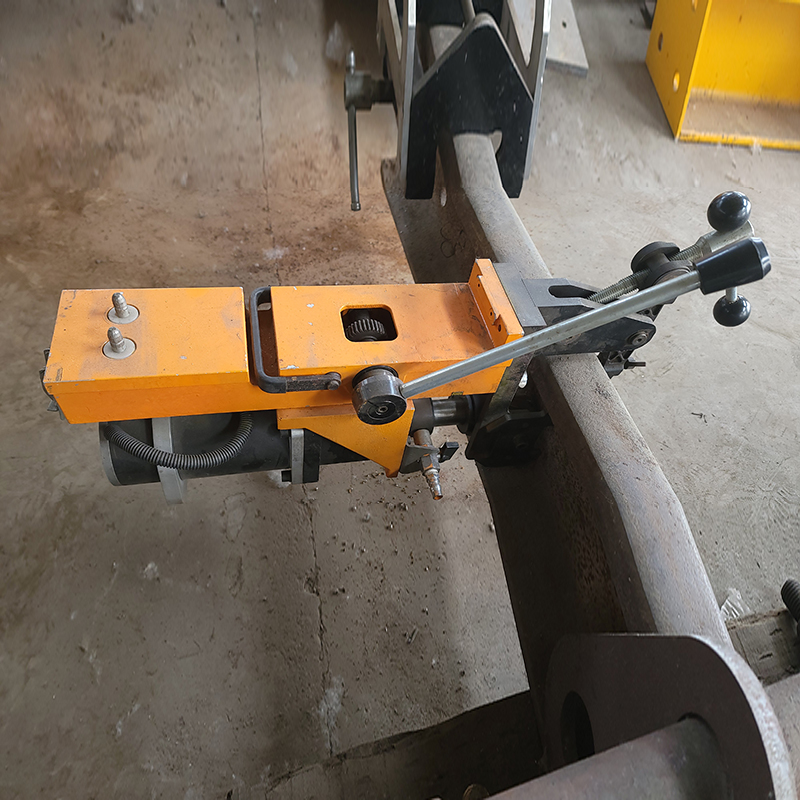

When using, first open the clamping mechanism and install the drilling machine stably on the rail. Then use the clamping wheel to press the rail and tighten it with locking parts to ensure that the equipment is installed firmlyFinally, install the battery and start drilling.

In order to extend the service life of the drill bit and ensure the quality of drilling, the drill bit has to be cooled continuously with a coolant during the drilling process.

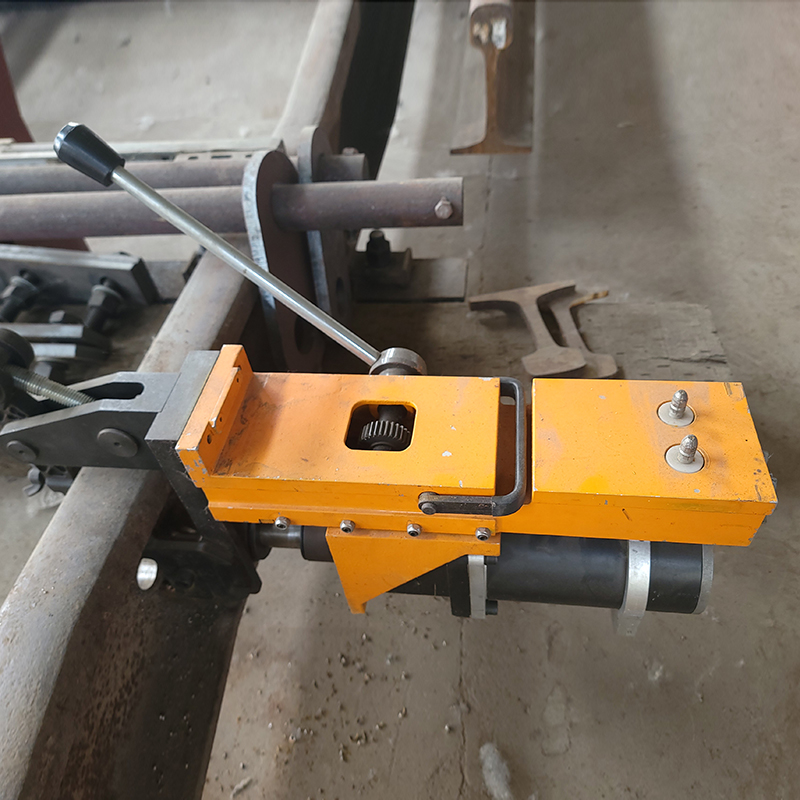

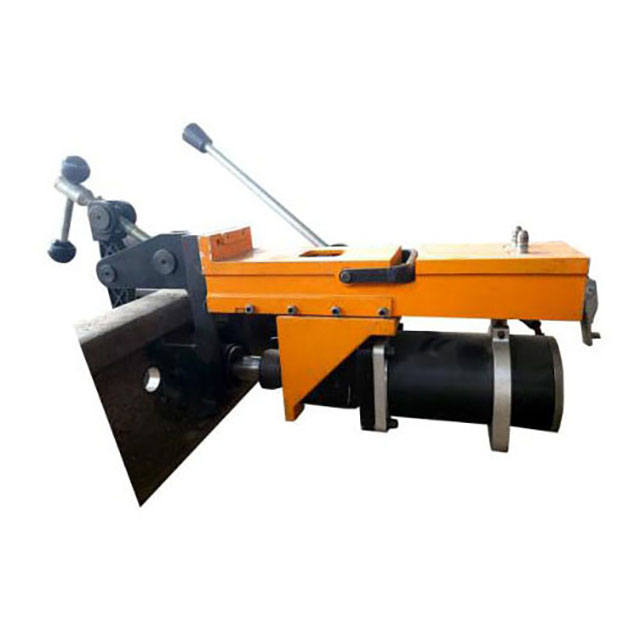

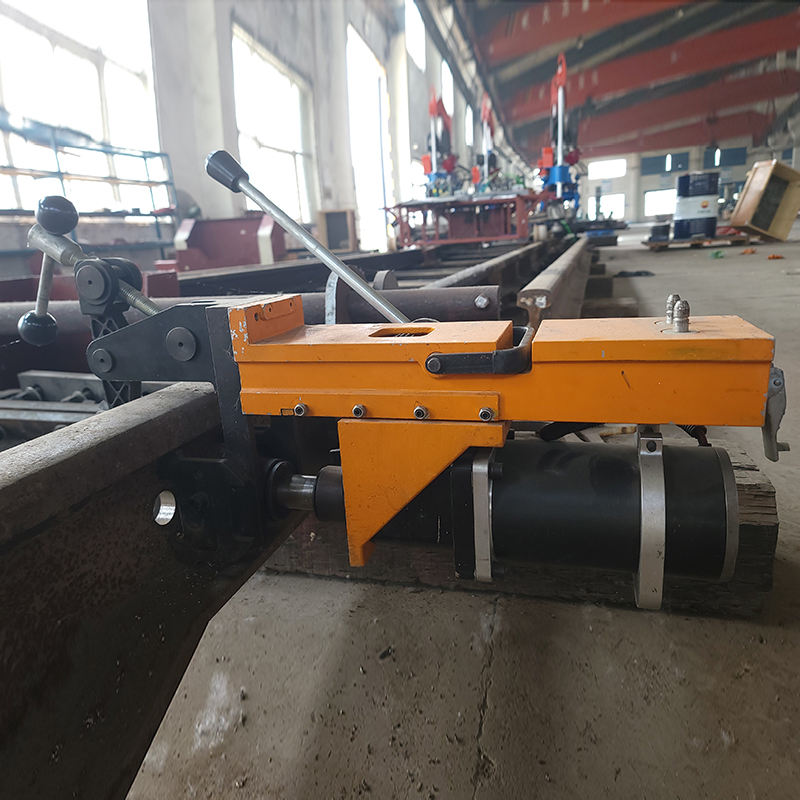

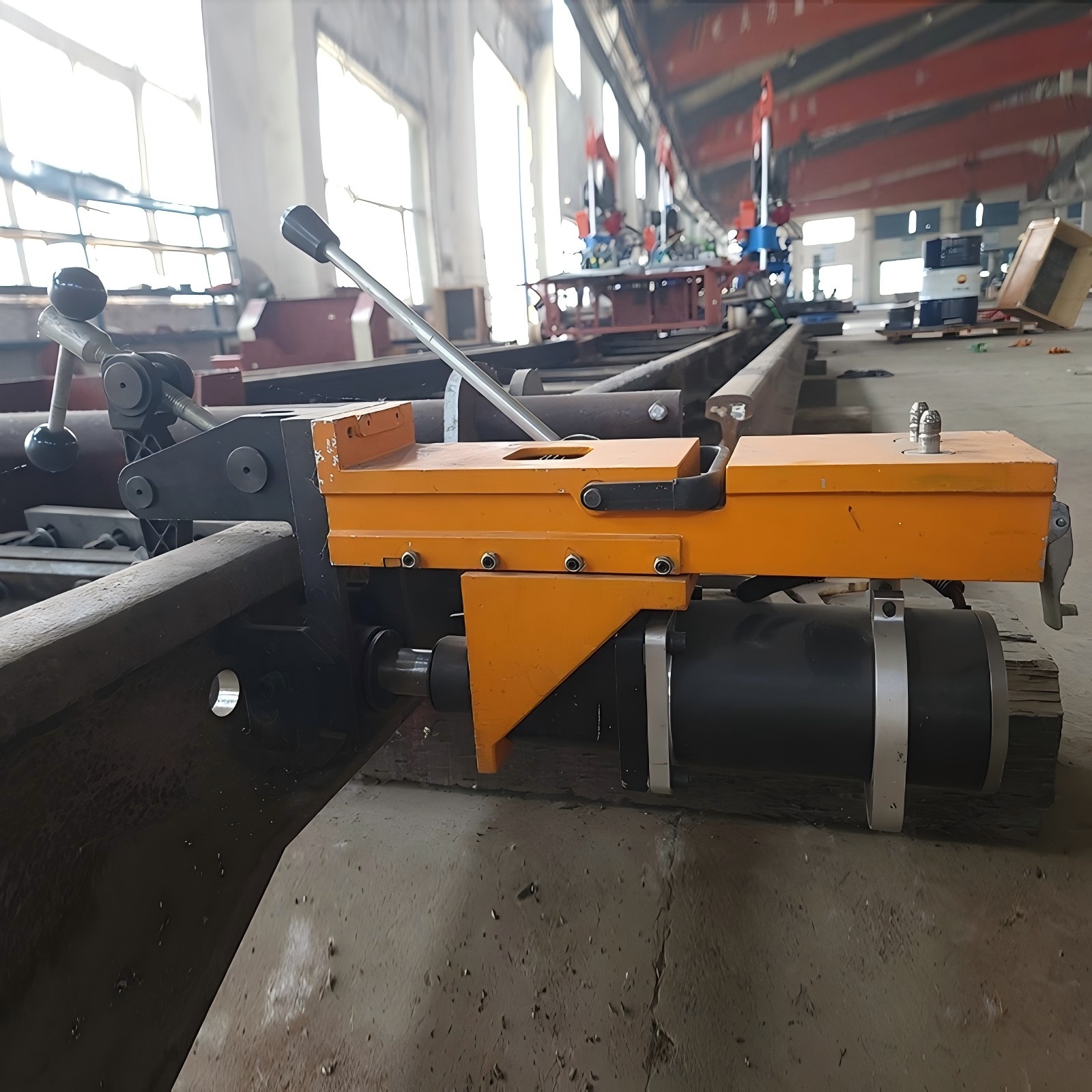

The Lithium Battery Drilling Machine is a specialized device engineered for rail drilling tasks, integrating essential components including a high-capacity lithium battery, precision feeding mechanism, secure clamping system, pressure wheel, efficient cooling device, and durable drill bit. Unlike traditional gasoline or diesel-powered drills, it prioritizes environmental friendliness and operational efficiency, making it a game-changer for railway maintenance teams. Whether for routine overhaul or emergency repair, this machine eliminates the hassle of external power supplies and reduces operational costs, while its robust design ensures reliable performance in challenging outdoor conditions.
