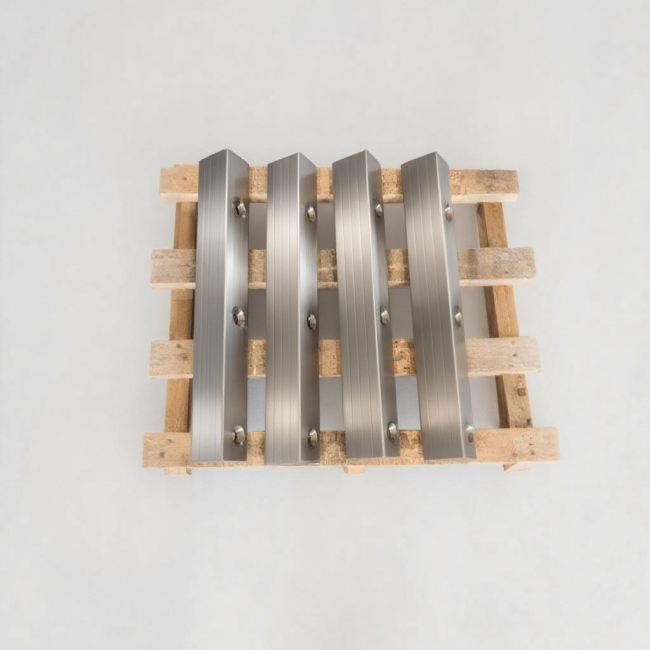

Alloy Wear Plate

Operating heavy-duty excavation and screening machinery exposes critical structural components to relentless friction, abrasive debris, and severe mechanical stress. The Alloy Wear Plate is meticulously engineered to serve as an impenetrable shield against these destructive forces. Installed strategically within excavation guide chutes, corner guides, and screening systems, this protective barrier absorbs the brutal impact of jagged ballast and heavy excavation chains. By integrating these plates into your machinery, you transform vulnerable contact points into highly resilient surfaces. The smooth, metallic finish of the brazed tungsten carbide surface not only resists deep gouging but also minimizes the harsh, grinding noise typically associated with rock-on-metal friction. This translates to a significantly quieter, more stable operation. Ultimately, these plates safeguard your foundational equipment infrastructure, drastically slashing routine maintenance costs and extending the overall lifecycle of your heavy machinery in the most demanding operational landscapes.

Product Specifications

Key Features & Highlights

Engineered for maximum operational efficiency, our wear plates offer a transformative upgrade for high-friction machinery. The integration of cutting-edge metallurgy ensures your equipment remains operational under the most punishing conditions.

• Exceptional Tungsten Carbide Hardness: The surface features a specialized hard alloy composition that effortlessly deflects sharp, abrasive materials, maintaining a pristine structural profile over thousands of operating hours without yielding to deep surface scratches.

• Advanced Brazing Integration: By rapidly heating and melting the flux, the nano-hard alloy sheets are fused to the base metal with extraordinary weld strength. This highly controlled process results in near-zero thermal distortion, ensuring perfectly flat installation surfaces.

• Corrosion and Thermal Defense: Impervious to the corrosive effects of acidic or alkaline moisture found in raw soil and ballast, ensuring the metallic integrity remains uncompromised even in high-heat friction zones generated by continuous scraping.

• Acoustic and Vibrational Dampening: The dense alloy matrix actively absorbs kinetic energy, significantly muting the harsh clatter of rock processing and stabilizing the entire machine framework to protect sensitive surrounding components.

• Extended Component Longevity: Outperforms standard steel alternatives by multiplying the service life several times over. This extreme durability ensures your operational workflow remains uninterrupted, avoiding the cascading delays of sudden part failures.

Material & Composition

Industrial procurement demands materials that can withstand relentless environmental and mechanical degradation. Our wear plates are constructed using a meticulously formulated tungsten carbide-based hard alloy, representing the pinnacle of metallurgical engineering.

• Premium Tungsten Carbide Core: The primary defense layer utilizes ultra-dense tungsten carbide, providing an impenetrable barrier against continuous abrasive sliding. This material is specifically chosen for its ability to resist the deep gouging caused by heavy stone and metallic friction.

• Resilience in Harsh Environments: Designed to operate flawlessly in damp, highly acidic, or alkaline conditions, the chemical composition of the alloy prevents surface oxidation and deep-layer rust, ensuring the plate does not degrade from environmental exposure.

• Thermal Stability Under Friction: Continuous heavy-duty scraping generates intense localized heat. Our specific alloy formulation maintains its structural hardness and resists thermal softening during prolonged operational shifts, preventing the material from smearing or warping.

• Optimized Base Substrate: The underlying metal matrix is selected for its superior load-bearing capacity, perfectly complementing the ultra-hard top layer. This dual-material approach ensures the hardened surface has a stable foundation, completely preventing structural delamination.

Manufacturing & Bonding Process

The true test of a protective plate lies in the bond between its hardened surface and its structural base. We employ a state-of-the-art brazing process that guarantees absolute cohesion, eliminating the risk of layer separation during heavy-load operations.

• Nano-Alloy Fusion: Utilizing ultra-fine nano-hard alloy sheets, the welding process achieves a microscopic level of integration with the base material. This creates a transition zone that seamlessly blends the hardness of the top layer with the flexibility of the base.

• Rapid Heating Technology: The specialized brazing technique utilizes rapid, controlled heating and quick flux melting. This ensures a flawless metallurgical bond without over-exposing the base metal to extreme temperatures, preserving its original temper and strength.

• Zero-Defect Weld Strength: The resulting bond exhibits extraordinary shear strength. Even under the aggressive, continuous scraping of heavy excavation chains, the hard-facing layer remains firmly attached, preventing catastrophic flaking or peeling.

• Minimal Thermal Distortion: By precisely controlling the heat input during the brazing phase, our manufacturing process guarantees that the final plate retains its exact geometric tolerances. This means no warping, no bending, and a perfect fit upon installation.

Mechanical Properties & Impact Resistance

Surface hardness alone is insufficient if the component shatters under sudden impact. Our engineering team has meticulously balanced extreme surface hardness with deep structural toughness to combat catastrophic fractures in the field.

• Stress-Dispersing Architecture: Critical vulnerability points, such as mounting holes and outer edges, are reinforced with strategically placed structural ribs and smooth rounded corners. This design actively dissipates kinetic energy away from potential fracture zones.

• High-Toughness Base Matrix: The underlying steel structure is engineered to possess exceptional ductility. It acts as a heavy-duty shock absorber against violent impacts, ensuring the kinetic force of striking heavy rocks is safely absorbed.

• Controlled Plastic Deformation: When struck by massive, unyielding debris or foreign metallic objects, the plate is designed to undergo micro-level plastic deformation. It will slightly yield to absorb the blow rather than cracking, snapping, or shattering entirely.

• Dynamic Load Endurance: Tested against continuous, rhythmic pounding, the integrated mechanical design prevents fatigue failure. This ensures highly reliable performance in high-vibration applications like vibrating screen systems and material transfer points.

Customization & Equipment Compatibility

Precision fitment is non-negotiable for industrial machinery maintenance. We provide a comprehensive customization program to ensure every plate acts as a flawless, drop-in replacement for your existing infrastructure.

• 100% Dimensional Accuracy: By utilizing your equipment's specific brand, exact model, or original OEM part numbers, we machine each plate to strict original tolerances. This guarantees a seamless installation process without the need for on-site modifications.

• Complex Geometric Profiling: Whether your machinery requires intricate U-shaped liners for deep excavation channels or specialized L-shaped plates for tight corner transitions, our advanced fabrication capabilities cover all structural demands.

• Variable Thickness Profiles: We tailor the ratio of the hard alloy layer to the flexible base substrate based on your specific operational wear patterns. This allows us to optimize the plate for either maximum abrasion resistance or maximum impact absorption.

• Rapid Prototyping and Scaling: From unique, custom-engineered designs for highly specialized heavy machinery to large-scale standardized production runs, our manufacturing lines seamlessly adapt to your precise industrial sourcing requirements.

Application Scenarios

Different zones within heavy machinery experience vastly different types of mechanical wear. Our protective solutions are highly specialized to address the unique destructive forces present at each critical operational juncture.

• Excavation Guide Chutes (Digging Beams): Installed along the bottom and side walls to form a robust U-shaped defense. This area directly combats the relentless gouging of digging chains and the heavy friction of raw earth and jagged stones.

• Chain Transition Segments: Custom-molded plates are strategically deployed to guide heavy chains through tight corners. This ensures smooth mechanical transitions, preventing the chains from digging deep grooves into the primary machine frame.

• Vibrating Screen Housings: Deployed in areas of continuous, high-frequency rock friction. These plates maintain the structural integrity of the screening mechanism, enduring thousands of micro-impacts per minute without adding excessive weight to the vibrating unit.

• Conveyor Belt Drop Points: Specially reinforced high-impact zones designed to absorb the punishing kinetic energy of heavy materials free-falling from transfer points, prioritizing extreme impact resistance alongside sliding wear protection.

Lifespan & ROI

Evaluating industrial components requires a strict focus on the Total Cost of Ownership. Investing in premium metallurgical protection yields exponential returns by fundamentally altering your equipment maintenance schedule.

• Exponential Lifespan Increase: Our advanced alloy configurations outlast conventional wear-resistant steel by multiples of tens. This drastically extends the operational runway of your machinery, pushing out the timeline for major overhauls.

• Minimized Operational Downtime: By eliminating the need for frequent part replacements, your heavy equipment remains in the field generating value rather than sitting idle in the maintenance bay awaiting structural repairs.

• Reduced Labor Expenditures: Fewer replacement cycles directly translate to thousands of hours saved in intensive mechanical labor, welding, and equipment teardowns, freeing your maintenance crew for proactive servicing.

• Predictable Maintenance Forecasting: The highly consistent and slow wear rate of our tungsten carbide plates allows procurement and maintenance teams to accurately forecast servicing intervals, optimizing spare parts inventory management.

Additional Features

Beyond pure mechanical defense, our components actively contribute to a safer, more compliant, and highly optimized operational environment for both the machinery and the operators.

• Acoustic Emission Reduction: The dense metallurgical structure dampens the high-decibel screeching and clattering caused by rock-on-metal processing. This significantly lowers the ambient noise profile, protecting the hearing of on-site personnel.

• Vibration Dampening: By absorbing mechanical resonance, the plates reduce the transfer of destructive vibrations throughout the machine's chassis. This protects sensitive electronic sensors, hydraulic lines, and structural welds from vibration-induced fatigue.

• Enhanced Flow Dynamics: The ultra-smooth finish of the hard-faced surface prevents wet or clay-heavy materials from sticking. This ensures a continuous, high-volume flow of materials without clogging, maintaining peak processing throughput.

• Eco-Friendly Longevity: Extending the lifecycle of heavy machinery parts significantly reduces the carbon footprint associated with manufacturing, shipping, and disposing of frequent replacement components, aligning with modern industrial sustainability goals.

Why Choose Us

Sourcing critical machinery components requires a partner with proven metallurgical expertise and unyielding quality control. Tangshan Kuntie Technology Co., Ltd. stands at the forefront of industrial wear solutions.

• Direct Manufacturer Advantage: By controlling the entire production lifecycle from raw alloy selection to final brazing, we eliminate intermediary markups. This allows us to deliver premium, heavy-duty quality at highly competitive price points.

• Uncompromising Quality Assurance: Every plate undergoes rigorous ultrasonic and mechanical testing to ensure zero defects. We guarantee flawless performance upon installation, giving you absolute confidence in your equipment's reliability.

• Deep Industry Expertise: With extensive experience in supplying components for railway line maintenance and heavy infrastructure equipment, we deeply understand the catastrophic financial cost of component failure in the field.

• Dedicated Engineering Support: Our technical team collaborates directly with your maintenance engineers to analyze wear patterns. We engineer bespoke solutions that perfectly align with your operational goals, ensuring you get the exact protection your machinery requires.
